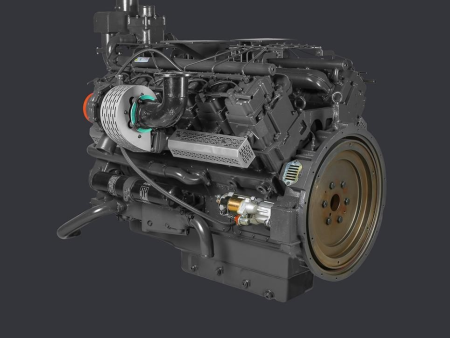

QCV1200
| 聯系人： | 馮先生/薛女士 |
|---|---|
| 電話： | 13358580037/13358580035 |
| 固話： | 0595-22606788 |
| 郵箱： | 1181628875@qq.com |
| 店面地址： | 泉州市洛江區五金機電商城3幢5-6號 |
| 工廠地址： | 福建省泉州市洛江區萬安街道華大科技創業園興達路55號 |
| 價格： | 價格面議 |
| 更多信息 | |
| 分享： |
|
產品介紹
QCV系列柴油機是在原1 3 8 系列柴油機的基礎上進行改良的發電用新款柴油機，具有外觀美觀、功率強勁、運行可靠、節能環保等特點。
配有油水分離器，系統報警自我保護裝置和機油抽油泵，使柴油機應用更安全、可靠、方便。
采用高增壓和空空中冷技術，配以專用高壓油泵和多孔低壓慣量噴油器及電子調速器， 霧化好，燃燒充分，降低噪音，節能環保。
QCV series diesel engine is a new type of power generation diesel engine which is improved on the basis of the original series 138 series.
The air intake system is optimized in structure, the appearance of pipeline is simplified, and high-grade vehicle paint is selected. The appearance is more compact and beautiful.
Equipped with oil and water separator, system alarm self-protection device and oil pump, making the diesel engine application more safe, reliable and convenient.
Adopting high pressure and air medium cooling technology, equipped with special high pressure oil pump, porous low pressure inertia injector and electronic governor, it can atomize well and burn well , reduce noise and save energy and environmental protection
發動機型號/Engine Model
QCV1200
發動機型式/Type
Direct injection,four-stroke,water-cooled,V-Line
進氣方式/Intake Type
增壓中冷/Turbocharged with intercooled
標定功率/Rated power
zui大功率/Max power
1160kw
缸徑/行程/Bore*Stroke
138×165（mm）
氣缸數/Number of Cylinders
12
氣缸類型/Cylinders Type
濕式/Wet liner
總排量/Total Displacement
32.7(L)
標定工況燃油消耗率/Specific Fuel Consumption
198（g/kw.h）
標定工況機油消耗率/Specific Oil Consumption
≤0.7（g/kw.h）
怠速轉速/Idle Speed
700(rpm)
標定轉速/Rated Speed
1500(rpm)
調速方式/Speed Governing Mode
電子調速/Electronic Covernor
起動方式/Starting Mode
電啟動/Electrical staring
曲軸旋轉方向/Crankshaft Rotating Direction
逆時針/Anti-Clockwise 面向飛輪端/Facing the flwheel
噪聲/Noise
117(db)
排氣煙度/Smoke
≤2.0
飛輪殼/Flywheel casing
SAE0
飛輪/Flywheel
SAE18
凈重/Net Weight
2200(kg)
長*寬*高/Long*wide*high
2015*1750*1500(mm)
燃油牌號（按 GB 252 規定）
Fuel Gade(Aooording to the Provisions of GB 252)
一般環境 0 號或-10 輕柴油General Environment No.0 or No.-10 Light Diesel Oil
南方地區/Southern Area
N0.10 輕柴油/N0.10 Light Diesel Oil
北方寒冷地區/Northern Coid Area
.-35 號或凝點更低的輕柴油/No.-35 or Lower Point Light
Diesel Oil
機油按 GB 11122 的規定
Engine Ol Aooording to The Provisions of GB 11122
CF15W/40( 環 江 溫 度 -5℃ 下 ) CF15W/40(Below environment temperature-5℃)
