產品介紹
產品特色

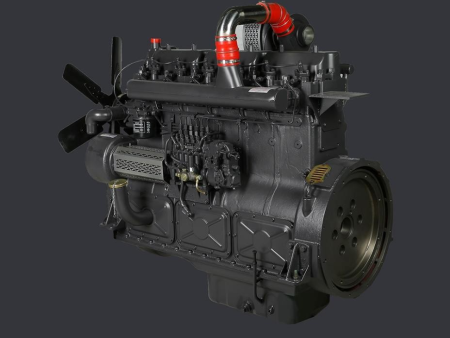

QC系列柴油機是在原 135 系列柴油機的基礎上進行改良的發電用新款柴油機，具有外觀美觀、功率強勁、運行可靠、節能環保等特點。
進氣系統結構優化，外觀管路布置簡化，選用車用漆，外觀顯得更加緊湊和美觀。
配有油水分離器，系統報警自我保護裝置和機油抽油泵，使柴油機應用更安全、可靠、方便。
采用高增壓和空空中冷技術，配以專用高壓油泵和多孔低壓慣量噴油器及電子調速器， 霧化好，燃燒充分，將傳統 135 柴油機的最低油耗降到 198g/kw.h，降低噪音，節能環保。
QC series diesel engine is a new type of power generation diesel engine which is improved on the basis of the original series 135 series.
The air intake system is optimized in structure, the appearance of pipeline is simplified, and high-grade vehicle paint is selected. The appearance is more compact and beautiful.
Equipped with oil and water separator, system alarm self-protection device and oil pump, making the diesel engine application more safe, reliable and convenient.
Adopting high pressure and air medium cooling technology, equipped with special high pressure oil pump, porous low pressure inertia injector and electronic governor, it can atomize well and burn well, reduce the minimum fuel consumption of traditional 135 diesel engine to 198g/kw.h, reduce noise and save energy and environmental protection.
機號
A
B
C
D
QC171
895
105
320
720
發動機型號/Engine Model
QC171
發動機型式/Type
In-line,Direct injection,four-stroke,water-cooled
進氣方式/Intake Type
增壓/Turbocharged
標定功率/Rated power
zui大功率/Max power
171kw
缸徑/行程/Bore*Stroke
135*150(mm)
氣缸數/Number of Cylinders
6
氣缸類型/Cylinders Type
濕式/Wet liner
總排量/Total Displacement
12.8（L）
標定工況燃油消耗率/Specific Fuel
Consumption
198（g/kw.h）
標定工況機油消耗率/Specific Oil Consumption
≤1（g/kw.h）
怠速轉速/Idle Speed
500(rpm)
標定轉速/Rated Speed
1500(rpm)
調速方式/Speed Governing Mode
機械調速/Mechanical Covernor
起動方式/Starting Mode
電啟動/Electrical staring
曲軸旋轉方向/Crankshaft Rotating Direction
逆時針/Anti-Clockwise 面向飛輪端/Facing the
flwheel
噪聲/Noise
117(db)
排氣煙度/Smoke
≤3.0
飛輪殼/Flywheel casing
SAE 1
飛輪/Flywheel
SAE 14
凈重/Net Weight
1160(kg)
長*寬*高/Long*wide*high
1455*795*1245(mm)
燃油牌號（按 GB 252 規定） Fuel Gade(Aooording to the Provisions of GB
252)
一 般 環 境 0 號 或 -10 輕 柴 油 General Environment No.0 or No.-10 Light Diesel Oil
南方地區/Southern Area
10 輕柴油/10 Light Diesel Oil
北方寒冷地區/Northern Coid Area
.-35 號或凝點更低的輕柴油/No.-35 or Lower Point
Light Diesel Oil
機 油 按 GB 11122 的 規 定 Engine Ol Aooording to The Provisions of GB
11122
CF15W/40( 環 江 溫 度 -5℃ 下 ) CF15W/40(Below environment temperature-5℃)
